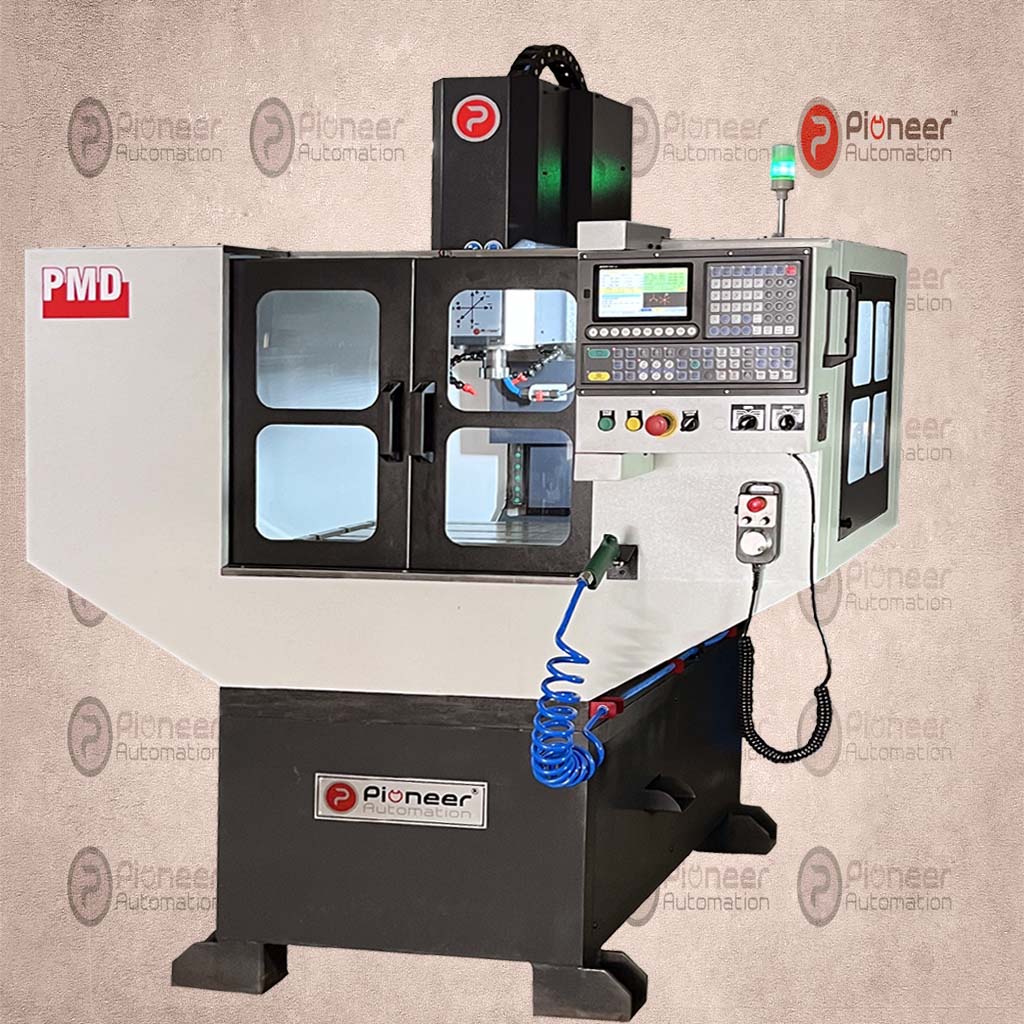

CNC Milling Machine (PCM)
Running small milling job on big VMC machine can be inefficient, and may even cut into profits. PIONEER CNC MILLING Series provides an economical solution for milling jobs in a compact package that is loaded with full-size features. And they’re a valuable addition for shop needing a “Second-Op” machine.
The PCM Series make it ideal for most of versatile Milling solutions. The small footprints save space, and the machine’s cost is very affordable.
Technical Specifications
Capacity
PCM-533
PCM-744
PCM-1055
X-Axis Travel :
500 mm
700 mm
1000 mm
Y-Axis Travel :
300 mm
400 mm
500 mm
Z-Axis Travel :
300 mm
400 mm
500 mm
Rapid Feed Rates X/Y/Z Axis :
28/28/28 M/Min
28/28/28 M/Min
28/28/28 M/Min
Distance From Table Top to Spindle Face :
75 mm
75 mm
75 mm
Table
Table Size (Clamping Area) :
650x350 mm
850x400 mm
1150x500 mm
No./Width/CD Of T-Slots :
3/14/100 mm
3/14/100 mm
3/14/100 mm
Max Safe Load On Table :
200 Kg
300 Kg
400 Kg
Main Spindle
Taper :
BT30/ER32
BT40/ER40
BT40/ER40
RPM :
8000
8000
8000
Cutting Feed Rate :
1-8000 mm/M
1-8000 mm/M
1-8000 mm/M
Spindle Motor Continuous Rating :
3.7 KW
3.7 KW
5.5 KW
Automatic Tool Changer (Optional)
No. Off Tools :
8
8
8
Max. Tool Diameter (Pocket Full/Empty) :
80 / 125 mm
80 / 125 mm
80 / 125 mm
Tool Selection :
Random
Random
Random
Max. Tool Length :
250 mm
250 mm
250 mm
Max. Tool Weight :
7 KG
7 KG
7 KG
Accuracy
Positioning :
0.01 mm
0.01 mm
0.01 mm
Repeatability :
0.007 mm
0.007 mm
0.007 mm
Installation Data
Machine Weight (Approx) :
2600 Kg
2900 Kg
3500 Kg
Total Connected Load :
15 KVA
15 KVA
20 KVA
Power Supply :
3-PH / 440VAC
3-PH / 440VAC
3-PH / 440VAC
Machine Dimensions (WxDxH) (Approx) :
66” x 66” x 78H” (Approx.)
74” x 74” x 78H” (Approx.)
82” x 78” x 84H” (Approx.)
Operating System
Syntec :
F-11
F-11
F-11
Hust :
A60
A60
A60
Mitsubishi :
E-80
E-80
E-80
- Automatic 3-Axis Movement
- Standard ER / BT Spindle
- In-line Spindle
- 28m/min rapid speed,
- 8m/min cutting feed
- Roller Guideways
- User friendly job settings
- Silent operation & smooth cutting
- Easy to operate for any lay-man person
- Aerospace Industry
- Automotive Manufacturing
- Medical Devices
- Tooling and Mold Making
- Machine Tool Industry
- General Manufacturing
- Customization & Prototyping
