Horizontal Broaching Machine

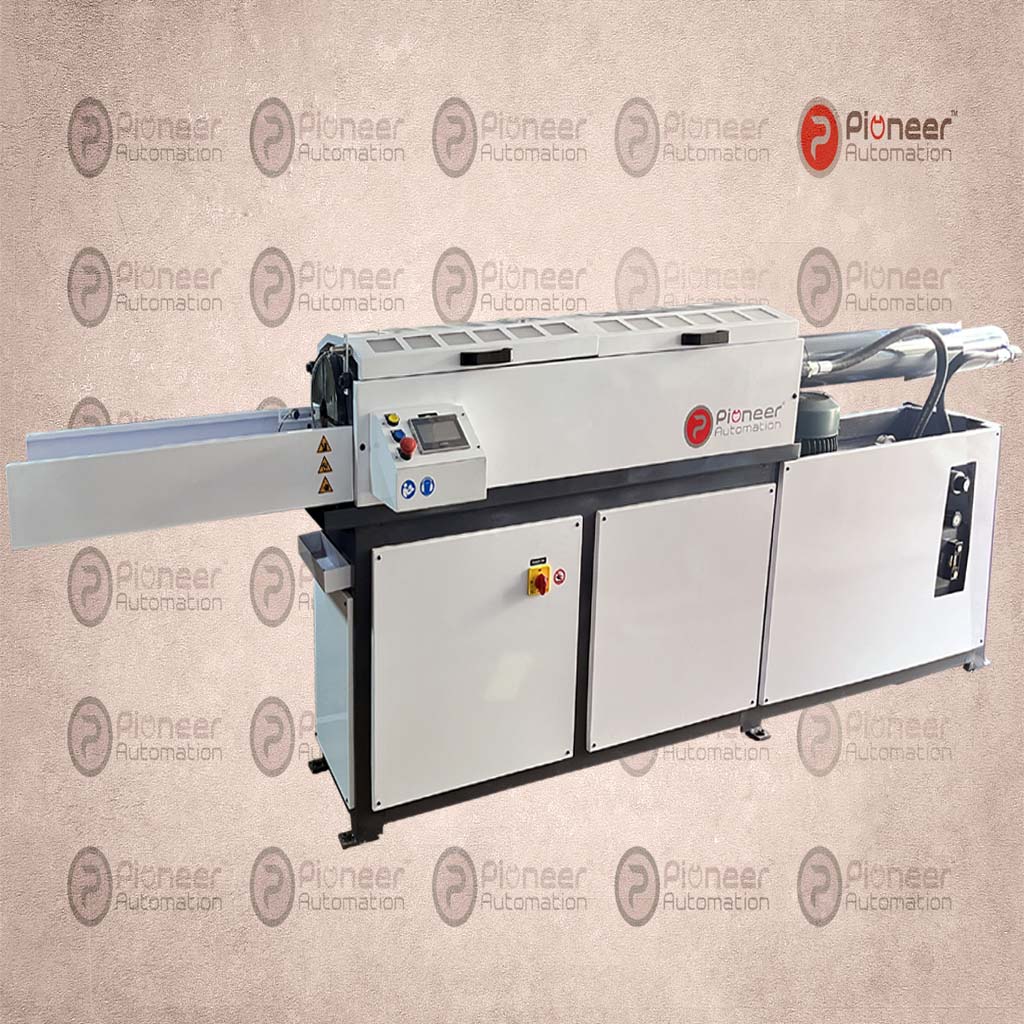

Pioneer Horizontal Broaching Machine BM-1010H / BM-1515H is designed to do spline or keyways onto workpieces with a 10-ton / 15-ton broaching force and 1000mm / 1500mm stroke capacity. BM-1010H / BM-1515H has been fabricated in a welded and mechanized steel Monoblock. Many different kinds of broaching tools can be used on this machine, including keyway, spline, ratchet, rectangle, hexagon, and so on.
The Pioneer BM-1010H / BM-1515H consists of a bed or a base almost double the length of broaching stroke in which the broach pilot and the drive mechanism for pulling the broach. PLC used to control overall machine operation.
Technical Specifications
Capacity
BM-1010H
BM-1515H
Max. Stroke :
1000 mm
1500 mm
Cutting Speed :
3300 mm/min
3300 mm/min
Return Speed :
9200 mm/min
9200 mm/min
Guide Safe Diameter :
80-90 mm
90-100 mm
Hydraulic Capacity :
10-12 ton
15-17 ton
Motor Power :
7.5 HP
10 HP
Automation Panel
PLC Type :
Standard
Standard
HMI Size :
4.7 Inch
4.7 Inch
Automation Grade :
Automatic (Hydraulic Pull Type)
Automatic (Hydraulic Pull Type)
Motor Control :
Switch Gear
Switch Gear
Other Installation Data
Coolant Tank Capacity :
15 Liter
15 Liter
Body Structure :
Mild Steel
Mild Steel
Machine Weighte :
1450 (Approx.) Kgs
2100 (Approx.) Kgs
Machine Dimensions (WxDxH) (Approx) :
32” x 23” x 64” (Approx.)
32” x 28” x 72” (Approx.)
Automatic Retrieval System :
Optional
Optional
- The overall Machine Operation is handled with a Programmable Logic Controller (PLC)
- Enhance the production rate of the products
- Ensure high-class finish and accuracy on the surface
- One pass of tools can do rough finishing cuts at one time
- It is used for external as well as internal use
- Broaching machines can cut the workpiece in any shape or design
- One can apply the cutting fluid on the effective area as the broach tends to cut more efficiently in the liquid
- Aerospace Industry
- Automotive Manufacturing
- Medical Devices
- Tool and Die Industry
- Heavy Machinery Industry
- Military and Defense Weaponry Components
- Customization & Prototyping
